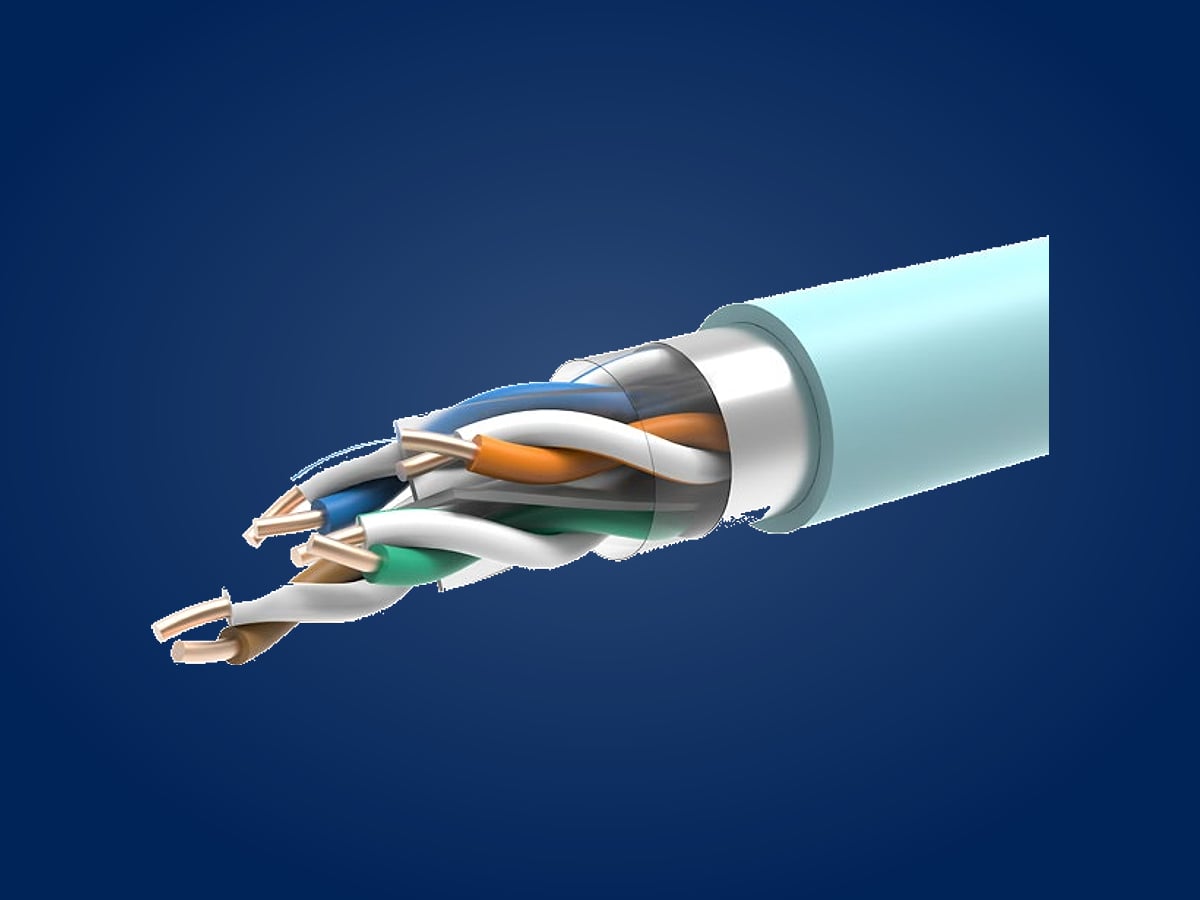

Cat.6A U/UTP Installation Cable
Part Number: RK-C6A-UUTP-CAB
Cat.6A U/UTP installation cable, 500 MHz, for 10 Gigabit Ethernet without shielding.
- 500 MHz Bandwidth
- 10 Gigabit Ethernet Ethernet
- 23 AWG Conductor
- U/UTP Construction
- LSZH Jacket
Overview
- U/UTP without overall shield
- 500 MHz bandwidth
- 10 Gigabit Ethernet
- 23 AWG solid conductors
- LSZH outer jacket
Technical Data
| Category | Cat.6A |
|---|---|
| Construction | U/UTP |
| Bandwidth | 500 MHz |
| Conductor | Solid bare copper / 23 AWG |
| Insulation material | High-density polyethylene (HDPE) |
| Insulation diameter | 1.12 mm |
| Jacket | LSZH |
| Jacket diameter | 7.2 mm |
| Transmission delay skew | ≤ 45 ns/100 m |
| NVP | 74 % |
| DC resistance | ≤ 9.38 Ohm/100 m |
| DC resistance unbalance | ≤ 5 % |
| Operating temperature | −30 °C to +60 °C |
Transmission Performance
| Frequency (MHz) | Attenuation max. (dB/100 m) | Return loss min. (dB) | NEXT min. (dB) | PS NEXT min. (dB) | ACR-F min. (dB) | PS ACR-F min. (dB) |
|---|---|---|---|---|---|---|
| 1 | 2.1 | 20 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 3.8 | 23 | 65.3 | 63.3 | 55.8 | 52.8 |
| 10 | 5.9 | 25 | 59.3 | 57.3 | 47.8 | 44.8 |
| 16 | 7.5 | 25 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 8.4 | 25 | 54.8 | 52.8 | 41.8 | 38.8 |
| 31.25 | 10.5 | 23.6 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 15 | 21.5 | 47.4 | 45.4 | 31.9 | 28.9 |
| 100 | 19.1 | 20.1 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 27.6 | 18 | 39.8 | 37.8 | 21.8 | 18.8 |
| 250 | 31.1 | 17.3 | 38.3 | 36.3 | 19.8 | 16.8 |
| 350 | 34.3 | 16.8 | 37.1 | 35.1 | 18.3 | 15.3 |
| 500 | 45.3 | 15.2 | 33.8 | 31.8 | 13.8 | 10.8 |
Reference Standards
- IEC 61156-5
- ISO/IEC 11801-1
- ANSI/TIA-568.2-D
Ordering Information
Order codes and available versions within this product family.
| Order Code | Description | Fire Classification | Packing | Colour |
|---|---|---|---|---|
RK-C6A-UUTP-CAB-IEC |
U/UTP CAT6A 500MHz 4PR 23AWG LSZH | IEC 60332-1 | 305m/Drum | Blue |
