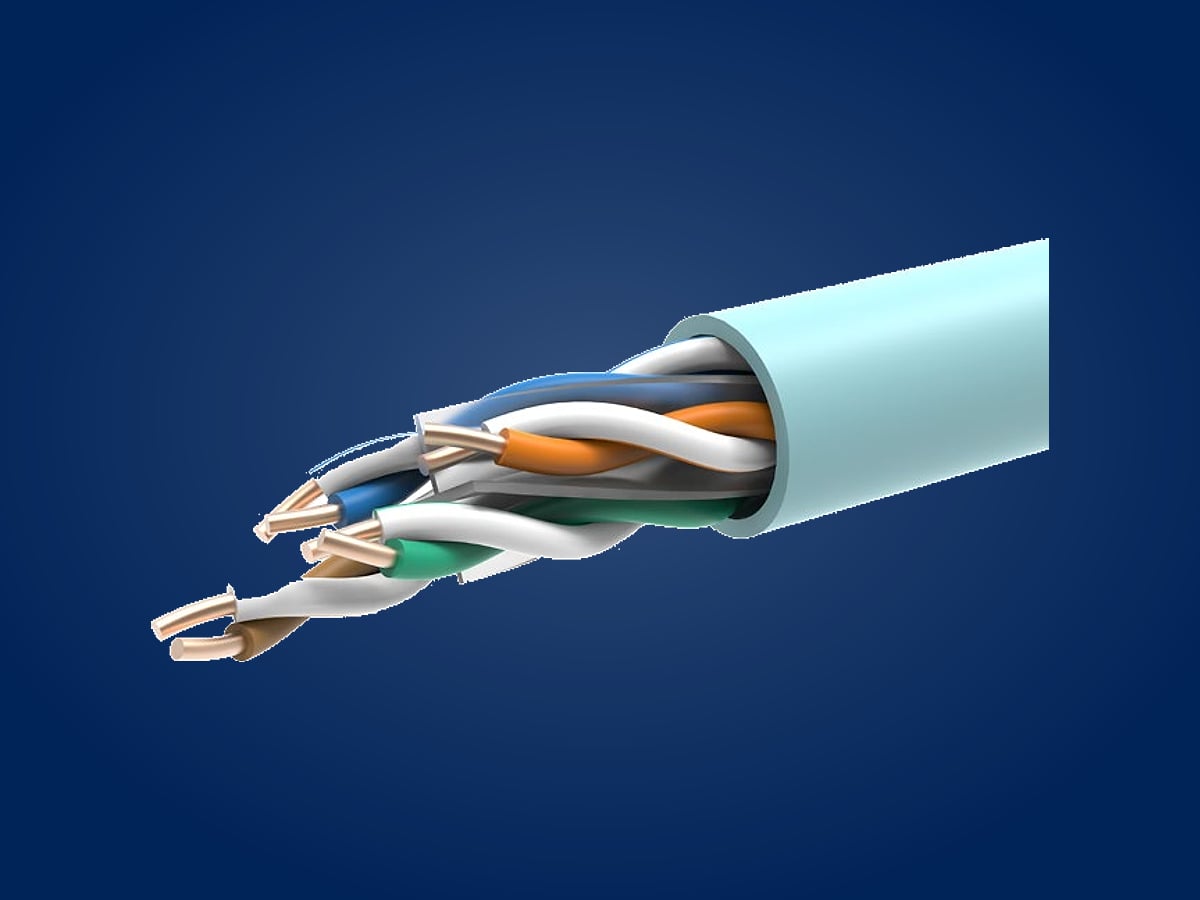

Cat.6 U/UTP Installation Cable
Part Number: RK-C6-UUTP-CAB
Cat.6 U/UTP installation cable, 500 MHz, for Gigabit Ethernet and structured cabling.
- 250 / 500 MHz Bandwidth
- Gigabit Ethernet Ethernet
- 23 AWG Conductor
- U/UTP Construction
- LSZH Jacket
Overview
- U/UTP without overall shield
- 500 MHz bandwidth
- 23 AWG solid conductors
- LSZH outer jacket
Technical Data
| Category | Cat.6 |
|---|---|
| Construction | U/UTP |
| Bandwidth | 500 MHz |
| Conductor | Solid bare copper / 23 AWG |
| Insulation material | High-density polyethylene (HDPE) |
| Insulation diameter | 0.98 mm |
| Jacket | LSZH |
| Jacket diameter | 6.1 mm |
| Transmission delay skew | ≤ 45 ns/100 m |
| NVP | 69 % |
| Capacitance | ≤ 5.6 nF/100 m |
| DC resistance | ≤ 9.38 Ohm/100 m |
| DC resistance unbalance | ≤ 5 % |
| Operating temperature | −30 °C to +60 °C |
Transmission Performance
| Frequency (MHz) | Attenuation max. (dB/100 m) | Return loss min. (dB) | NEXT min. (dB) | PS NEXT min. (dB) | ACR-F min. (dB) | PS ACR-F min. (dB) |
|---|---|---|---|---|---|---|
| 1 | 2.03 | 20 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 3.78 | 23 | 65.3 | 63.3 | 55.8 | 52.8 |
| 10 | 5.95 | 25 | 59.3 | 57.3 | 47.8 | 44.8 |
| 16 | 7.55 | 25 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 8.47 | 25 | 54.8 | 52.8 | 41.8 | 38.8 |
| 31.25 | 10.67 | 23.6 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 15.38 | 21.5 | 47.4 | 45.4 | 31.9 | 28.9 |
| 100 | 19.8 | 20.1 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 28.98 | 18 | 39.8 | 37.8 | 21.8 | 18.8 |
| 250 | 32.85 | 17.3 | 38.3 | 36.3 | 19.8 | 16.8 |
| 500 | 48.9 | 15.2 | 33.8 | 31.8 | 13.5 | 10.8 |
Reference Standards
- IEC 61156-5
- ISO/IEC 11801-1
- ANSI/TIA-568.2-D
Ordering Information
Order codes and available versions within this product family.
| Order Code | Description | Fire Classification | Packing | Colour |
|---|---|---|---|---|
RK-C6-UUTP-CAB-B1 |
U/UTP CAT6 250MHz 4PR 23AWG LSZH | B1-d0,t0,a1 | 305m/Drum | Purple |
RK-C6-UUTP-CAB-IEC |
U/UTP CAT6 500MHz 4PR 23AWG LSZH | IEC 60332-1 | 305m/Carton | Blue |
