COPPER CABLING / CATEGORY 5E / UNSCREENED

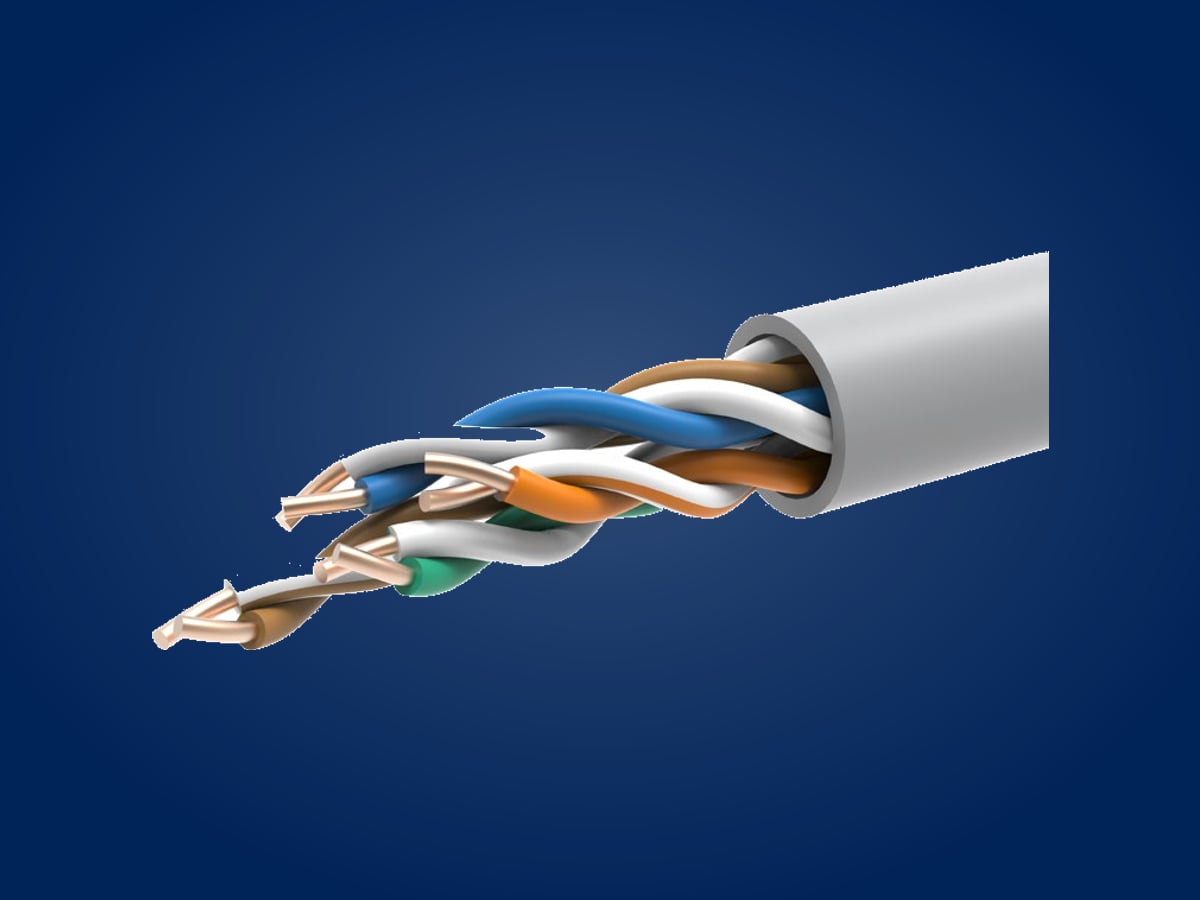

Cat.5e U/UTP Installation Cable
Part Number: RK-C5E-UUTP-CAB
Cat.5e U/UTP installation cable, 100 MHz, 24 AWG, PVC jacket for standard networks.
- 100 MHz Bandwidth
- 24 AWG Conductor
- U/UTP Construction
- PVC Jacket
Overview
- U/UTP without overall shield
- 100 MHz bandwidth
- 24 AWG solid conductors
- PVC outer jacket
Technical Data
| Category | Cat.5e |
|---|---|
| Construction | U/UTP |
| Bandwidth | 100 MHz |
| Conductor | Solid bare copper / 24 AWG |
| Insulation material | High-density polyethylene (HDPE) |
| Insulation diameter | 0.88 mm ± 0.05 mm |
| Jacket | PVC |
| Jacket diameter | 5.0 mm ± 0.4 mm |
| Transmission delay skew | ≤ 45 ns/100 m |
| NVP | 69 % |
| Capacitance | ≤ 5.6 nF/100 m |
| DC resistance | ≤ 9.5 Ohm/100 m |
| DC resistance unbalance | ≤ 5 % |
| Operating temperature | −20 °C to +60 °C |
Transmission Performance
| Frequency (MHz) | Attenuation max. (dB/100 m) | Return loss min. (dB) | NEXT min. (dB) | PS NEXT min. (dB) | ACR-F min. (dB) | PS ACR-F min. (dB) |
|---|---|---|---|---|---|---|
| 1 | 2 | 20 | 65.3 | 62.3 | 63.8 | 60.8 |
| 4 | 4.1 | 23 | 56.3 | 52.3 | 51.8 | 48.8 |
| 8 | 5.8 | 24.5 | 51.8 | 48.8 | 45.7 | 42.7 |
| 10 | 6.5 | 25 | 50.3 | 47.3 | 43.8 | 40.8 |
| 16 | 8.2 | 25 | 47.2 | 44.4 | 39.7 | 36.7 |
| 20 | 9.3 | 25 | 45.8 | 42.8 | 37.8 | 34.8 |
| 25 | 10.4 | 24.3 | 44.3 | 41.3 | 35.8 | 32.8 |
| 31.25 | 11.7 | 23.6 | 42.9 | 39.9 | 33.9 | 30.9 |
| 62.5 | 17 | 21.5 | 38.4 | 35.4 | 27.9 | 24.9 |
| 100 | 22 | 20.1 | 35.3 | 32.3 | 23.8 | 20.8 |
Reference Standards
- IEC 61156-5
- ISO/IEC 11801-1
- ANSI/TIA-568.2-D
Ordering Information
Order codes and available versions within this product family.
| Order Code | Description | Packing | Colour |
|---|---|---|---|
RK-C5E-UUTP-CAB-PVC |
U/UTP CAT5E 100MHz 4PR 24AWG PVC | 305m/Carton | Grey |
